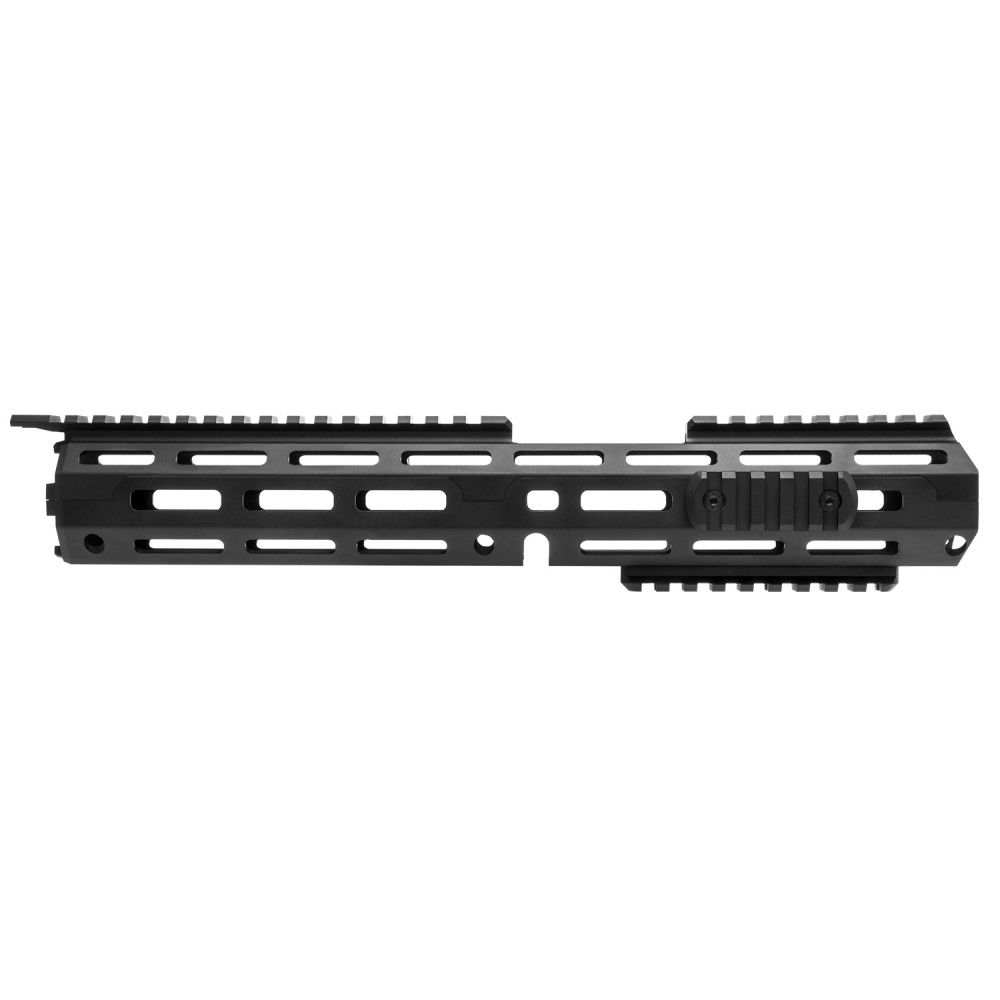

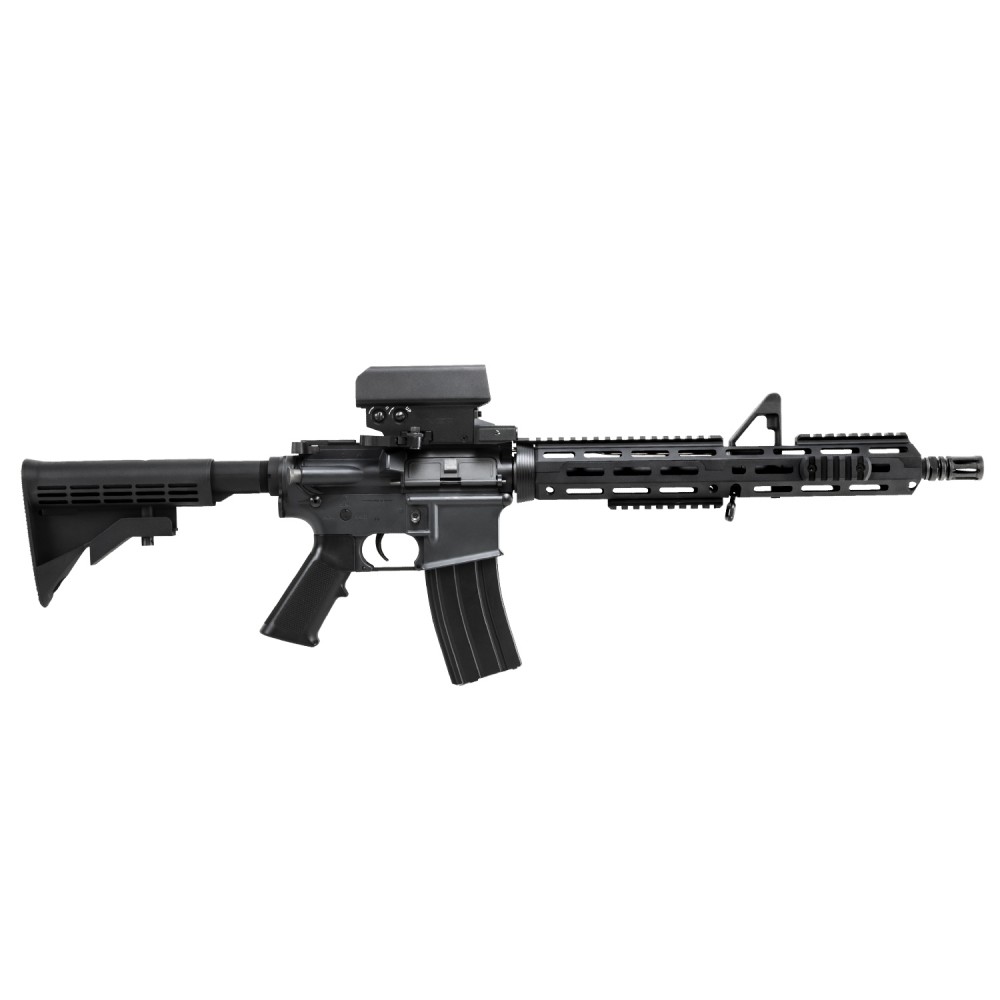

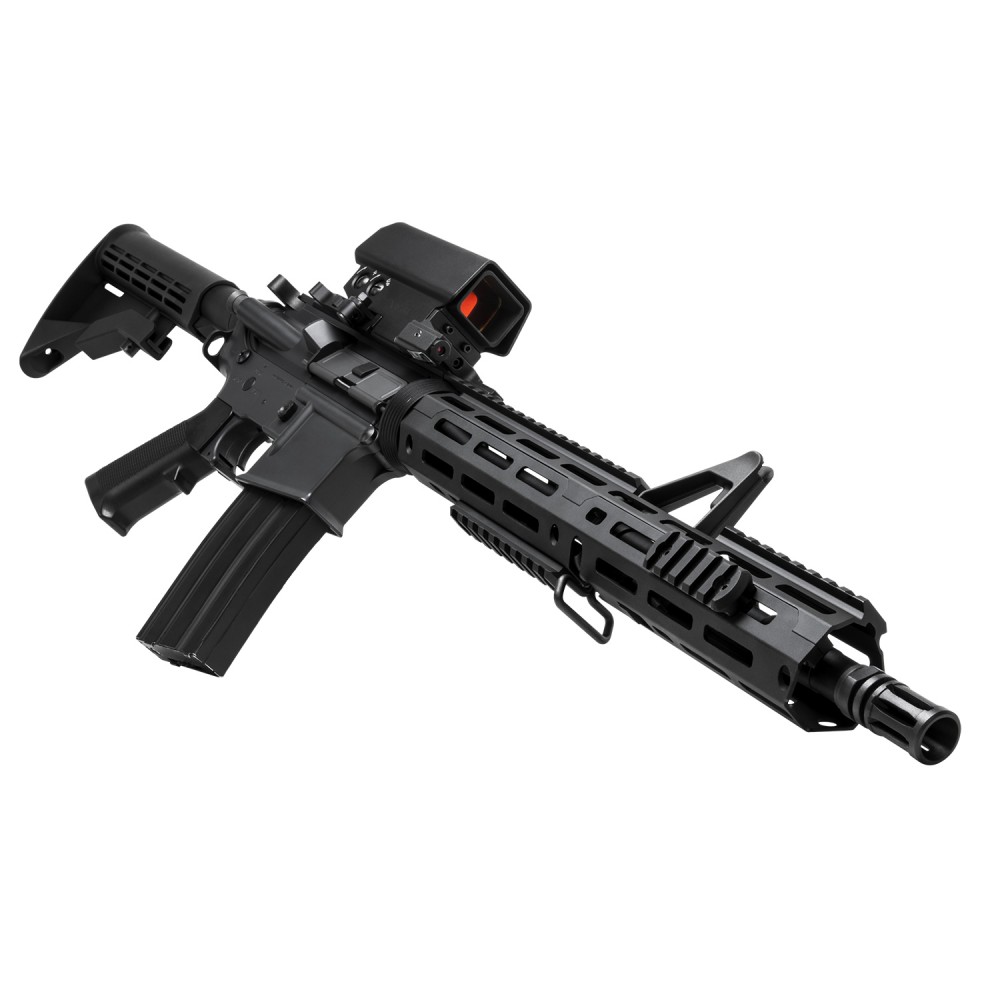

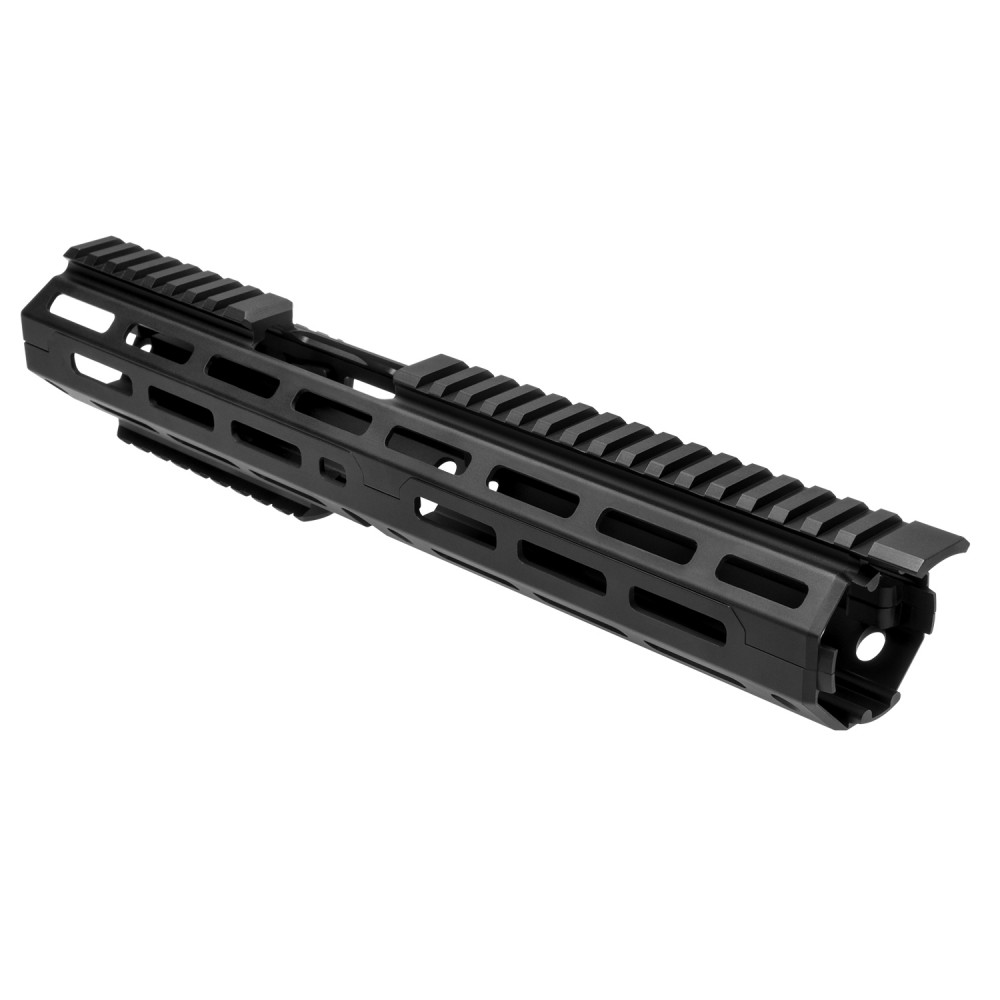

This handguard is a 2 piece drop in replacement for your carbine length AR-15.

If you like the look of a free float handguard, but don’t have to have to replace the gas block and do a lot of work, look no further!

The installation requires a allen wrench (provided)  and approximately 15 minutes of your time.

The handguard also comes with two movable M-Lok rail sections (1 long and 1 short)

To install the handguard;

Remove the old handguard, nothing else

remove 6 screws from the new handguard to split into two pieces

insert the bottom piece first, at an angle into the delta ring

push bottom piece gently while pressing upwards (you may have to move the sling mount slightly to get it through the pre-cut slot.

install top piece, also at an angle

squeeze both pieces together

!!! STOP !!! Before you proceed to the next step, please understand that aluminum screws strip very very easily. Tighten the screws carefully, maybe 1/4 turn past  snug, if you try to really tighten it down too much, you will damage the threads.

Install the 6 screws, and remember don’t overtighten.
